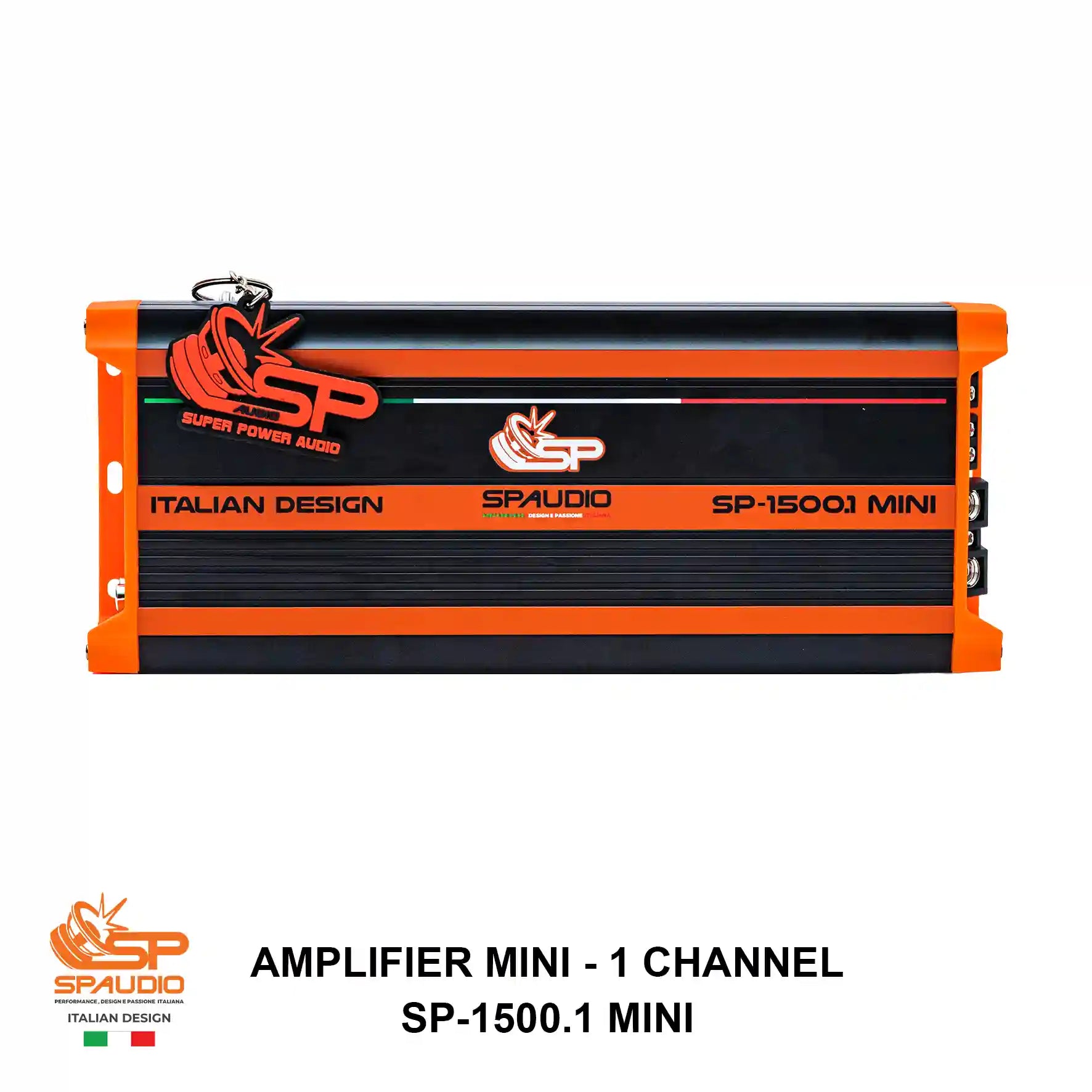

SP-1500.1 MINI . AMPLIFIER
Pay in easy, interest-free installments with Klarna.
SPAUDIO PERFORMANCE, ITALIAN DESIGN & PASSION

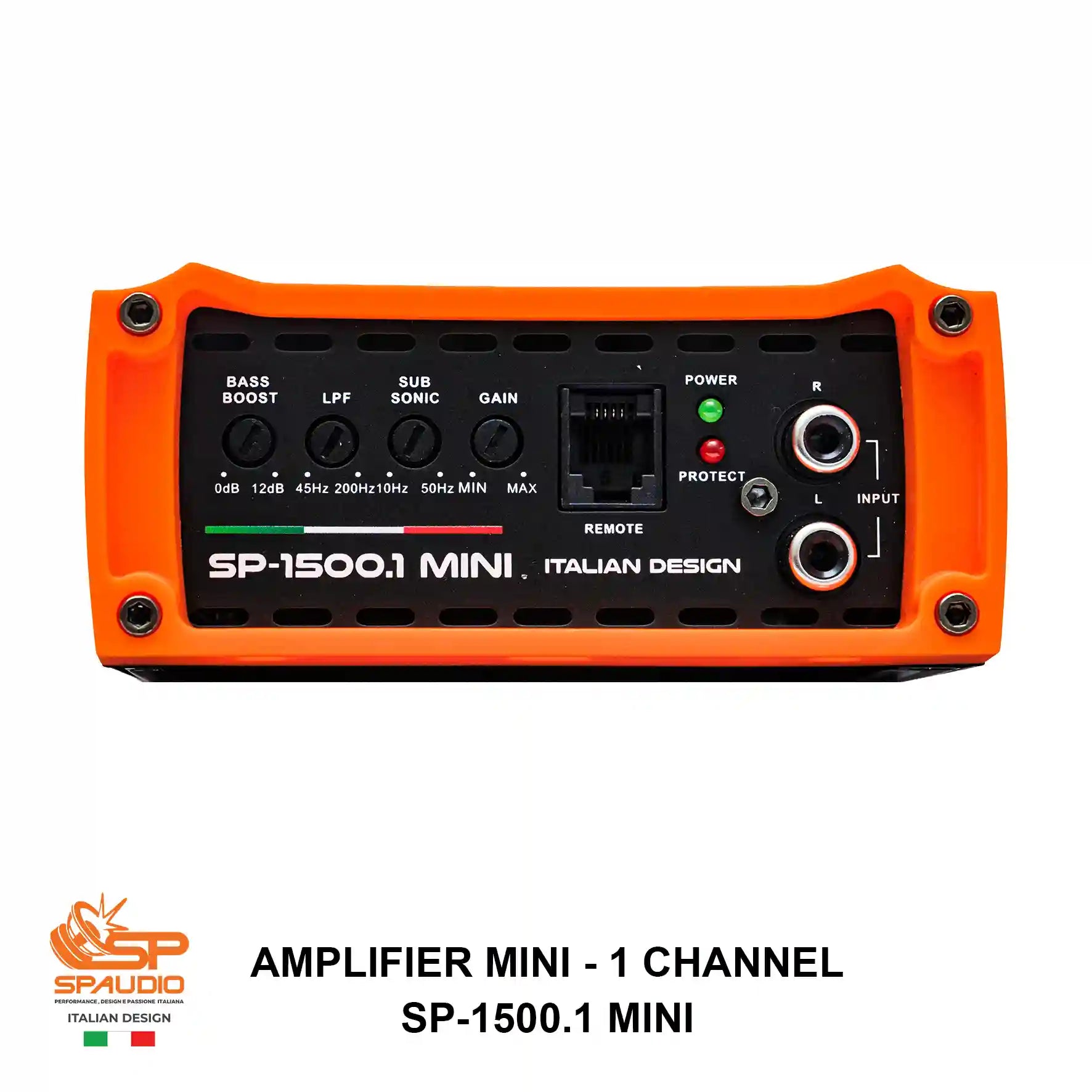

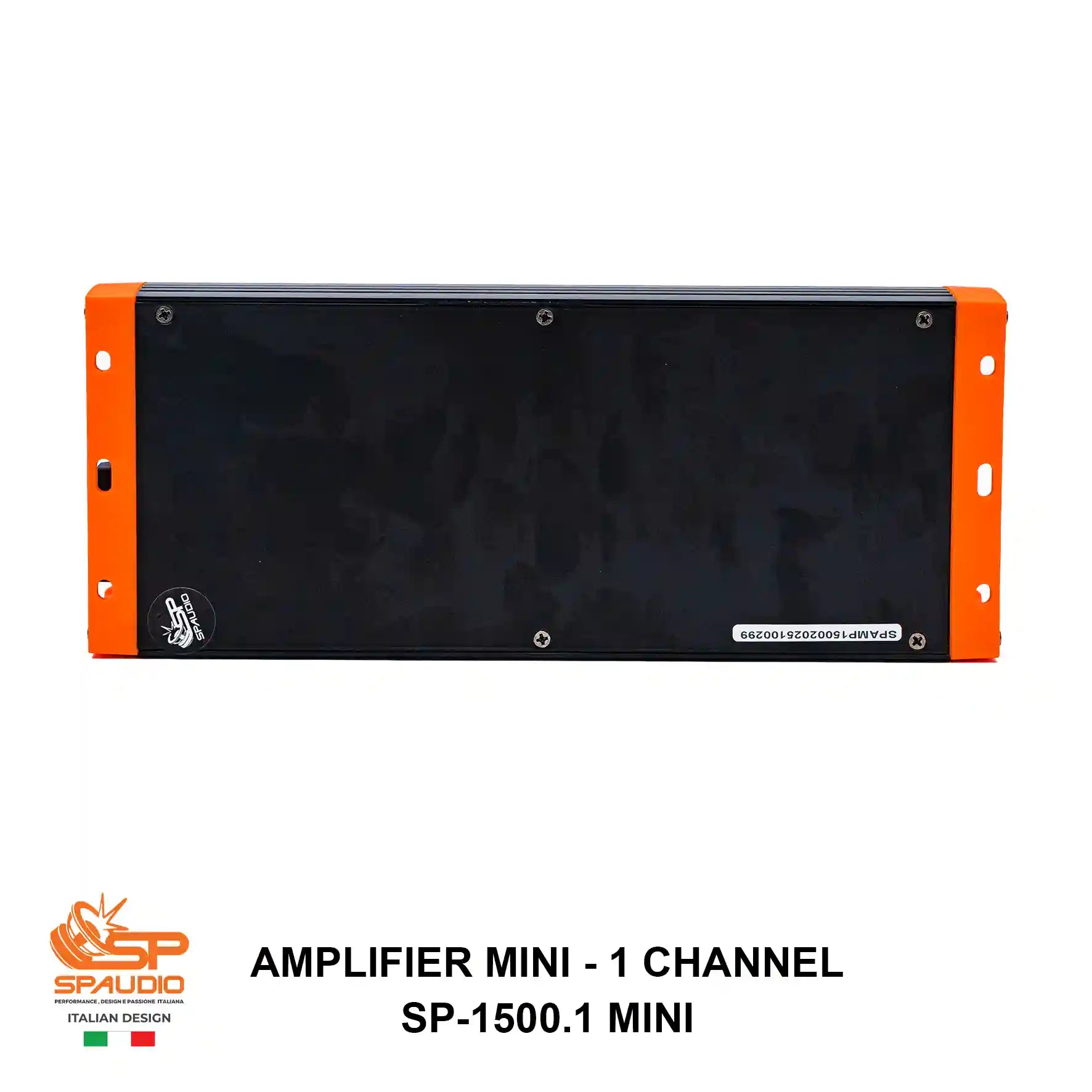

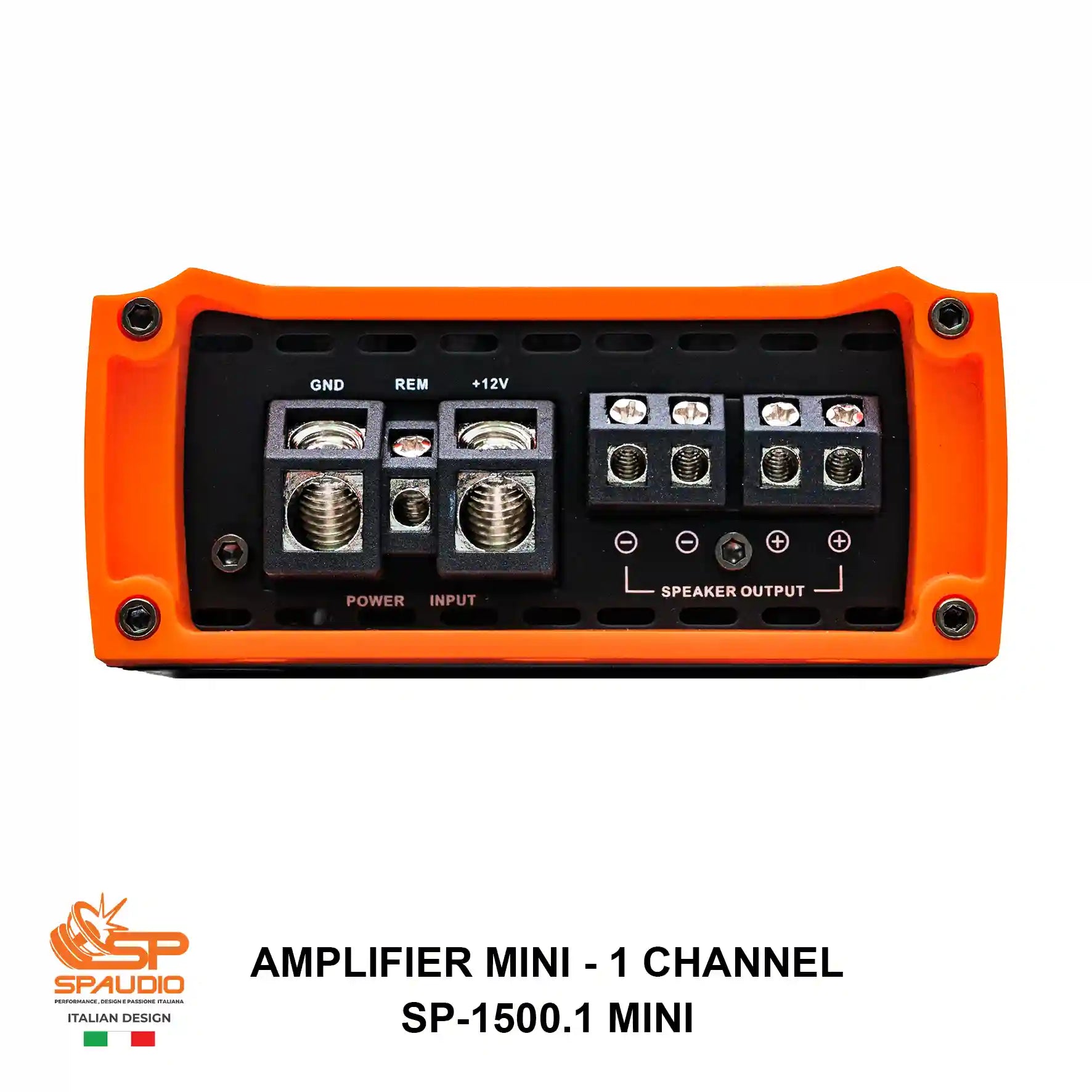

SP-1500.1 MINI
USER MANUAL SP-1500.1 MINI
-
Length: 270 mm
-
Width: 112 mm
-
Height: 46 mm
ELECTRICAL/ACOUSTIC PARAMETER |
CERTIFIED VALUE - SPAUDIO SP-1500.1 MINI |
RMS Power @ 4 Ohm (≤1% THD+N) |
600 W x 1 CH |
RMS Power @ 2 Ohm (≤ 1% THD+N) |
1000 W x 1 CH |
RMS Power @ 1 Ohm (≤ 1% THD+N) |
1500 W x 1 CH (Optimal SPL Output) |
Frequency Response (-3dB) |
10 Hz - 200 Hz |
Signal-to-Noise Ratio (S/N Ratio) |
≥90 dB (A-Weighted Clean Signal) |
Total Harmonic Distortion (THD+N) |
<0.1% @ 100 Hz / 4 Ohm |
Input Sensitivity Range (Line Level) |
200 mV - 6.0 V (Continuously Variable) |
Low Pass Filter (LPF Crossover) |
45 Hz - 250 Hz (12 dB/Octave Butterworth Slope) |
Subsonic Filter (Infrasonic Protection) |
10 Hz (OFF) - 50 Hz (12 dB/Octave Slope) |
Parametric Bass Boost |
0 dB - +12 dB (Centered at 45 Hz) |
Operating Voltage Range |
9.0 V - 16.0 V DC (Negative Ground) |
Internal Fuse Rating |
30A x 4 (120A Peak Current Demand) |
Physical Dimensions (L x W x H) |
270 mm x 112 mm x 46 mm (10.63" x 4.41" x 1.81") |
PCB Architecture & Components |
Military-Spec SMD Components on 2-Layer FR-4 Fiberglass PCB |
Multi-Stage Safety Protections |
Thermal (>85°C), Output Short Circuit, Over-Voltage, Under-Voltage, DC Offset |
SP-1500.1 MINI . AMPLIFIER
Sale price$ 3,551.00
