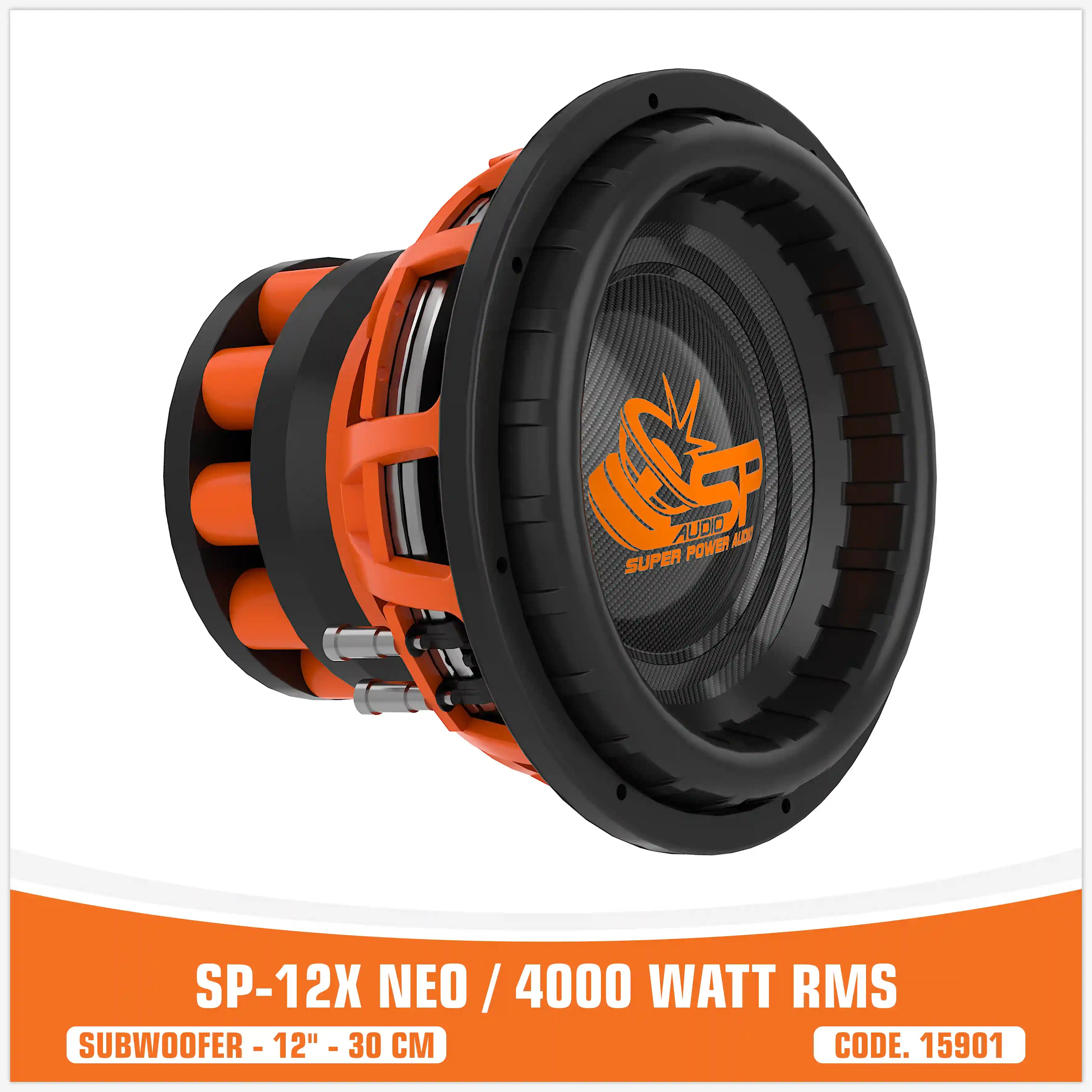

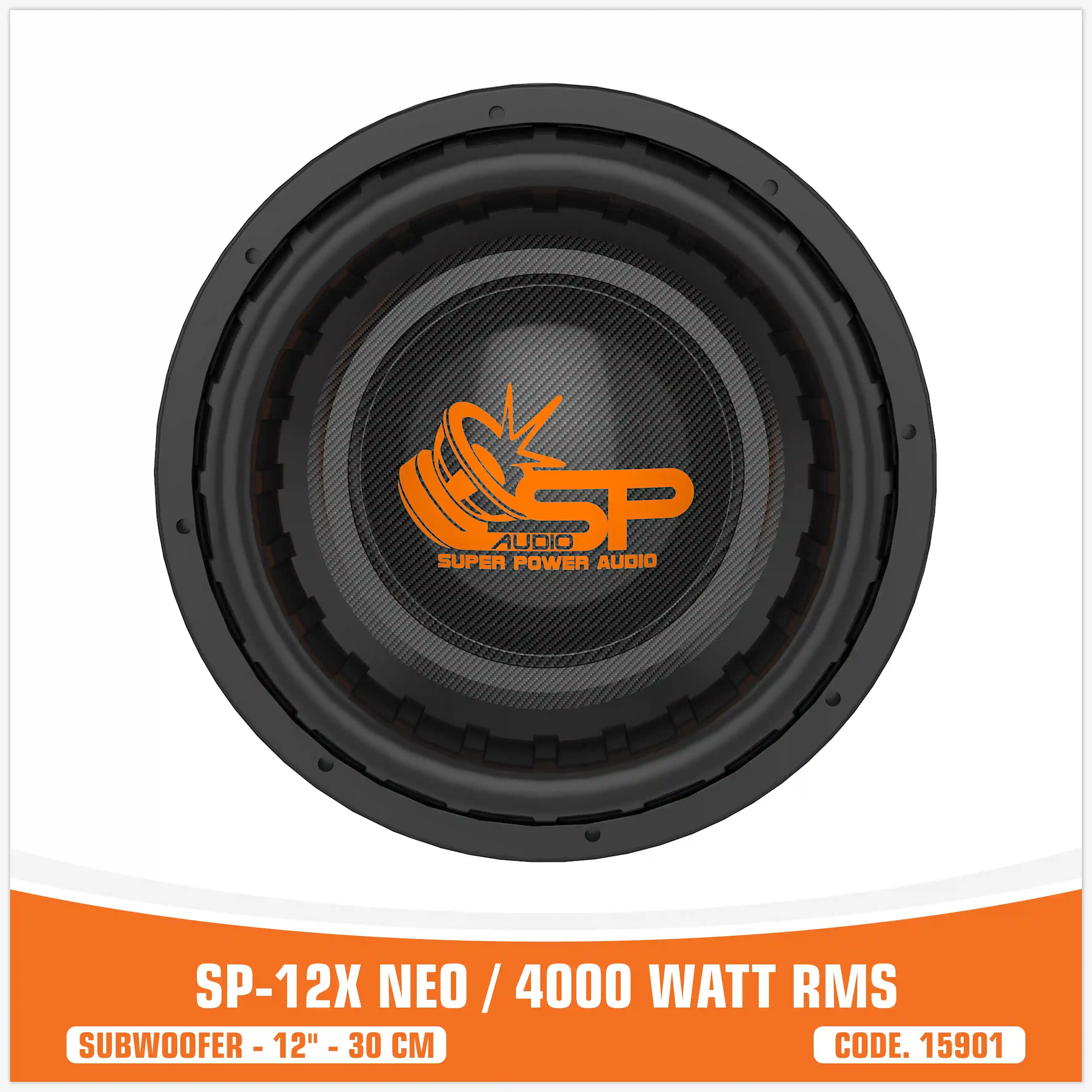

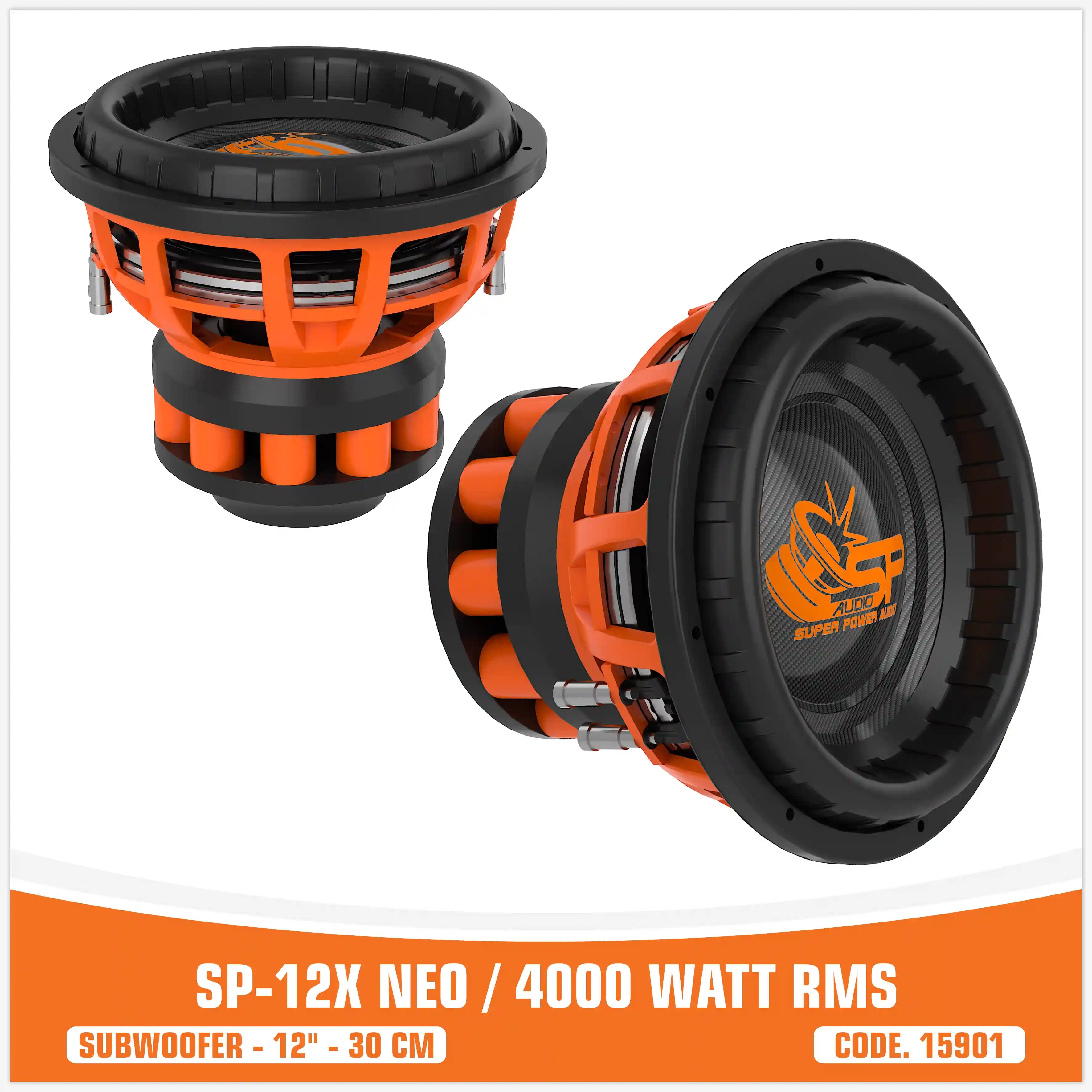

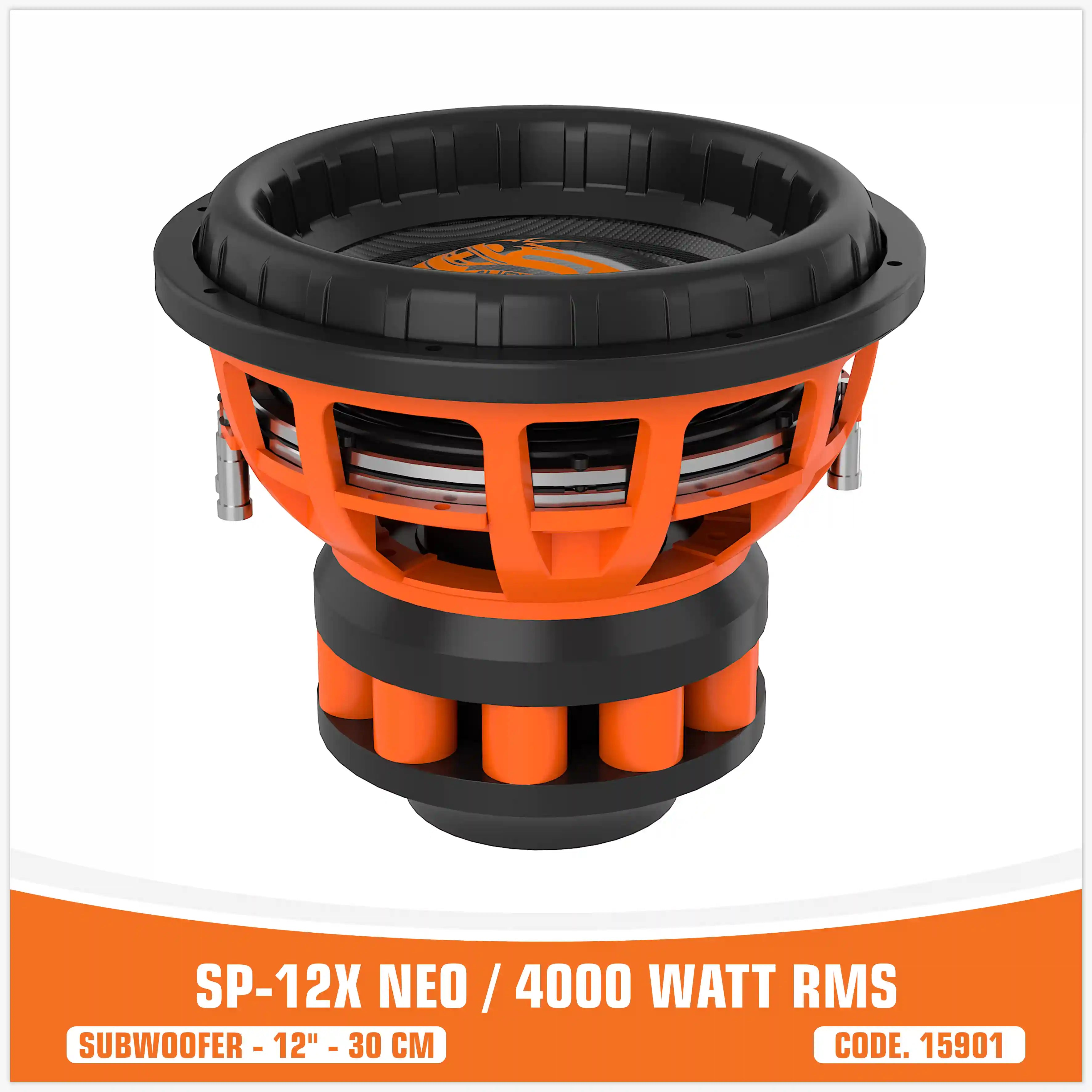

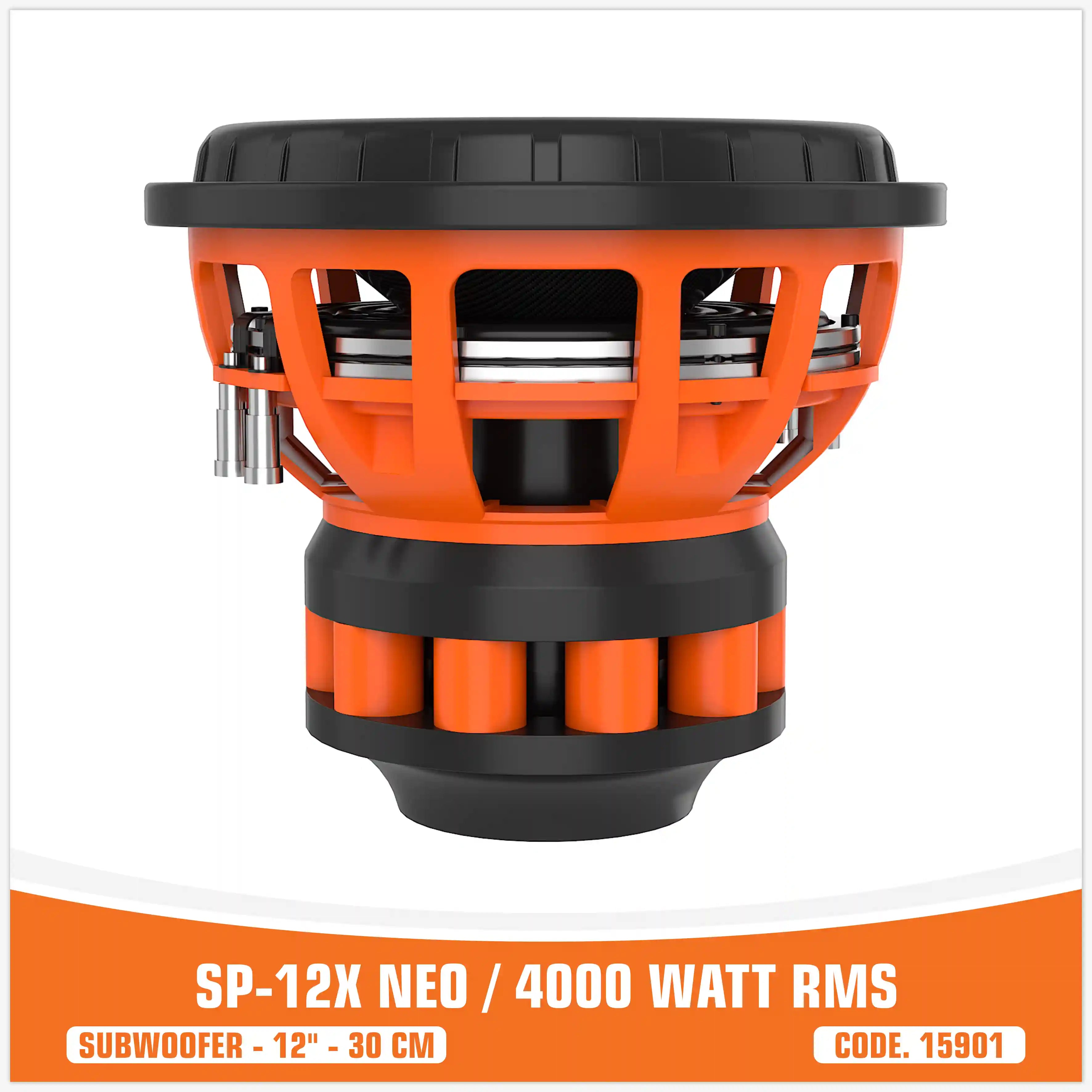

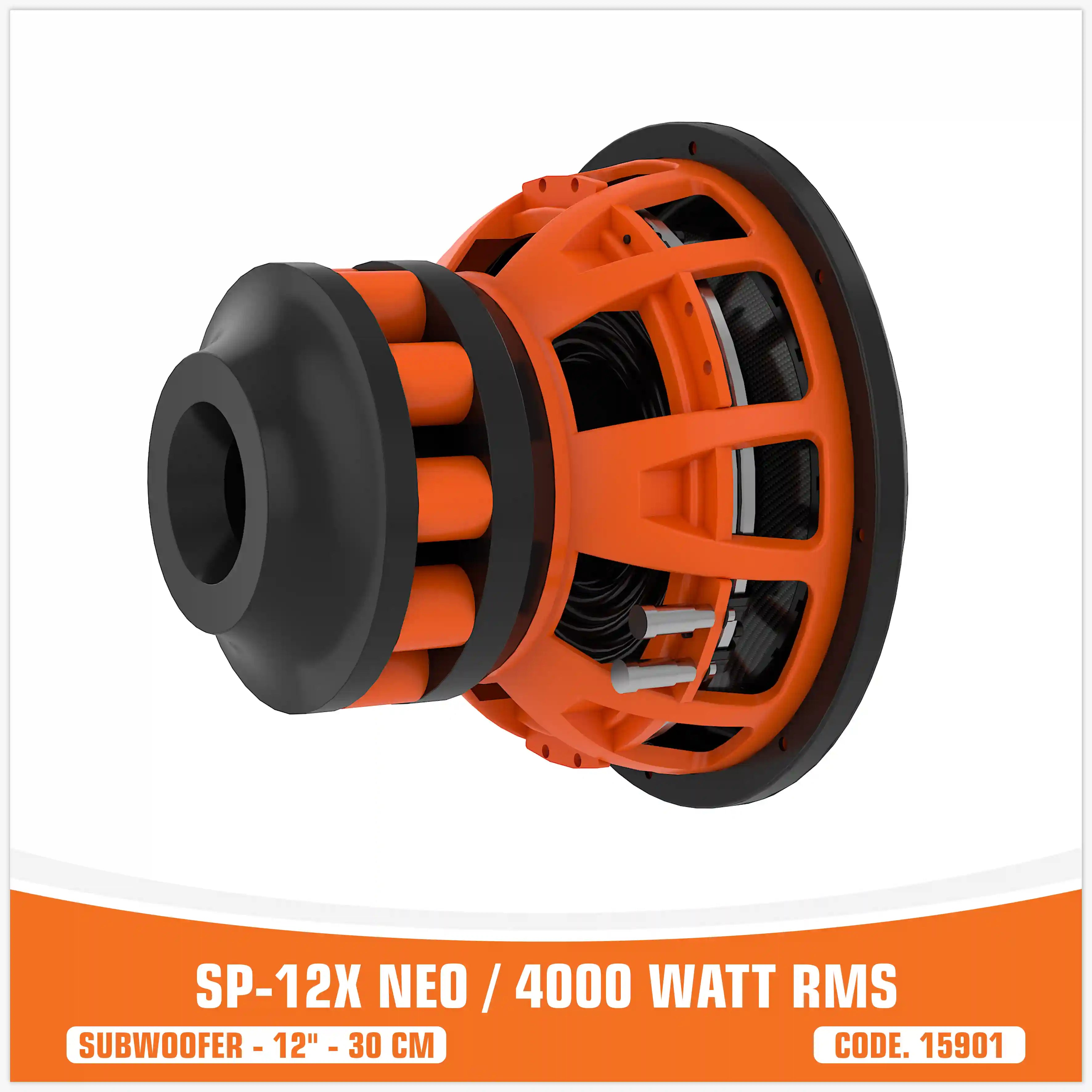

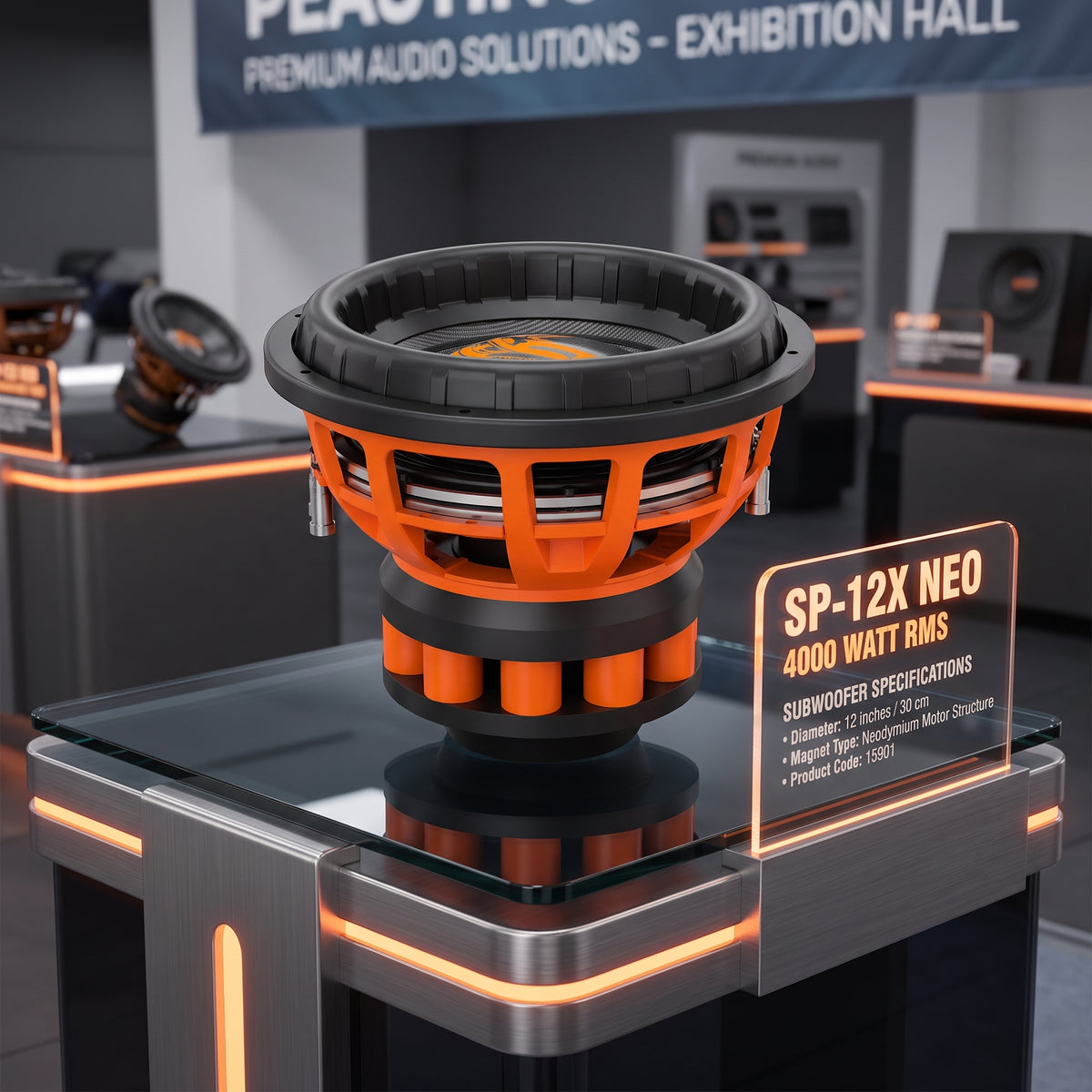

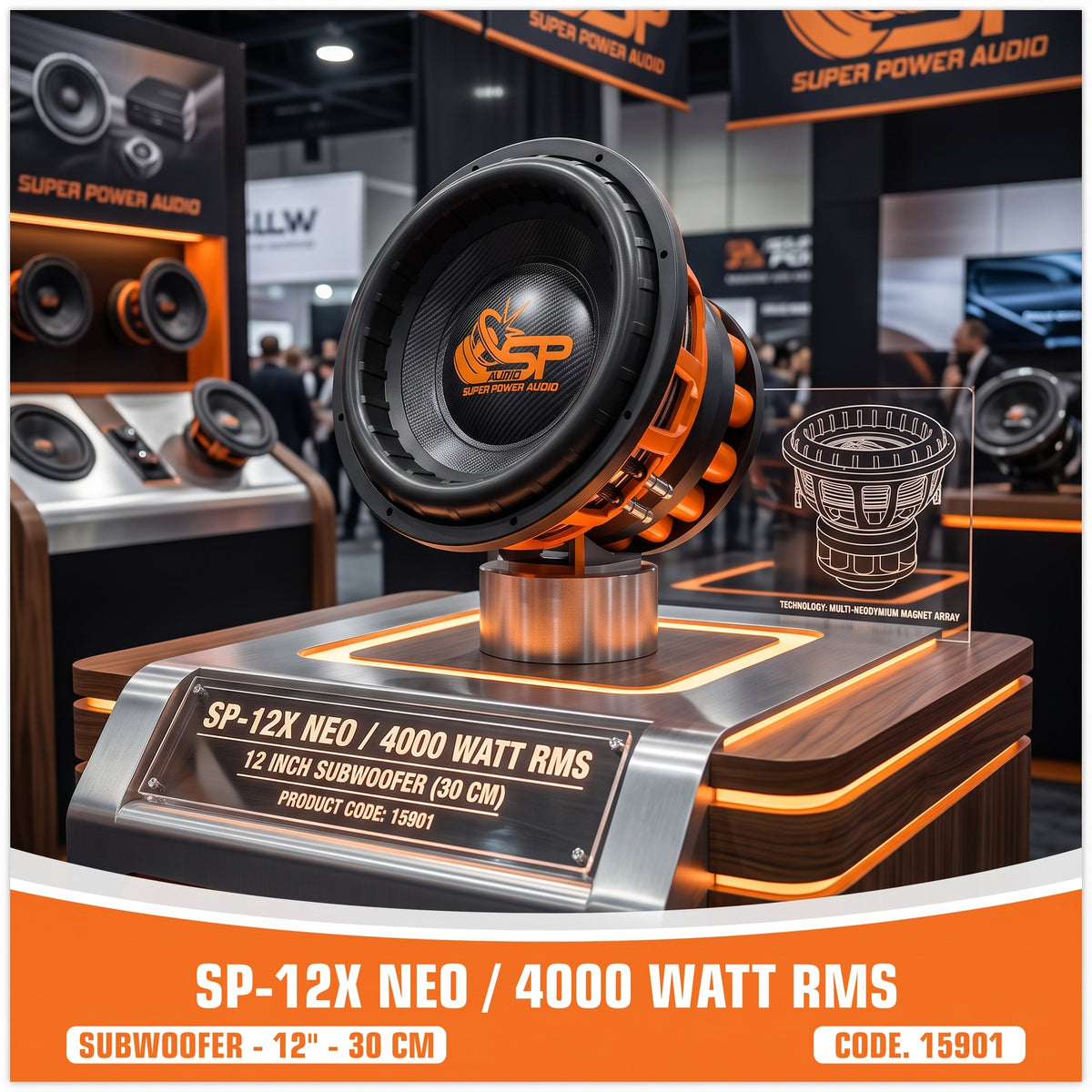

SP-12X NEO . 4000 WATT RMS (PRICE UNIT)

General Specifications

• Nominal Diameter: 12"

• Nominal Impedance: 2Ω/2Ω (noted in text as 20 *20)

• RMS Power Handling: 4000W

• Continuous Program Power: 8000W

• Sensitivity (1w/1m): 94dB

• Frequency Range: 33HZ-500HZ

• Voice Coil Diameter: 4 inch

• Winding Material: CCAW, 4 layer

• Former Material: Aluminum

• Winding Depth: 70mm

• Xmax: +-17.5.mm

• Surround Material: Carbon fiber / Surround: High-roll foam

• Surround Design: U-shape

• Magnet: N38H Neodymium

Parameters

• Nominal diameter: 12"

• DC Resistance (RE): 1Ω

• BL Factor (BL): 24,89

• Effective Moving Mass (MMS): 394,64

• Total Factor (QTS): 0,34

• Electrical Factor (QMS): 5,35 (Note: Text lists this as Electrical, though QMS is traditionally Mechanical)

• Mechanical Factor (QES): 0,37 (Note: Text lists this as Mechanical, though QES is traditionally Electrical)

• Compliance (CMS): 0,05

• Equivalent Cas Air Load (VAS): 16,92

• Resonance Frequency (FS): 33,48

• Effective Piston Area (SD): 0,05

• η(Eta Zero) (η0): 0,24

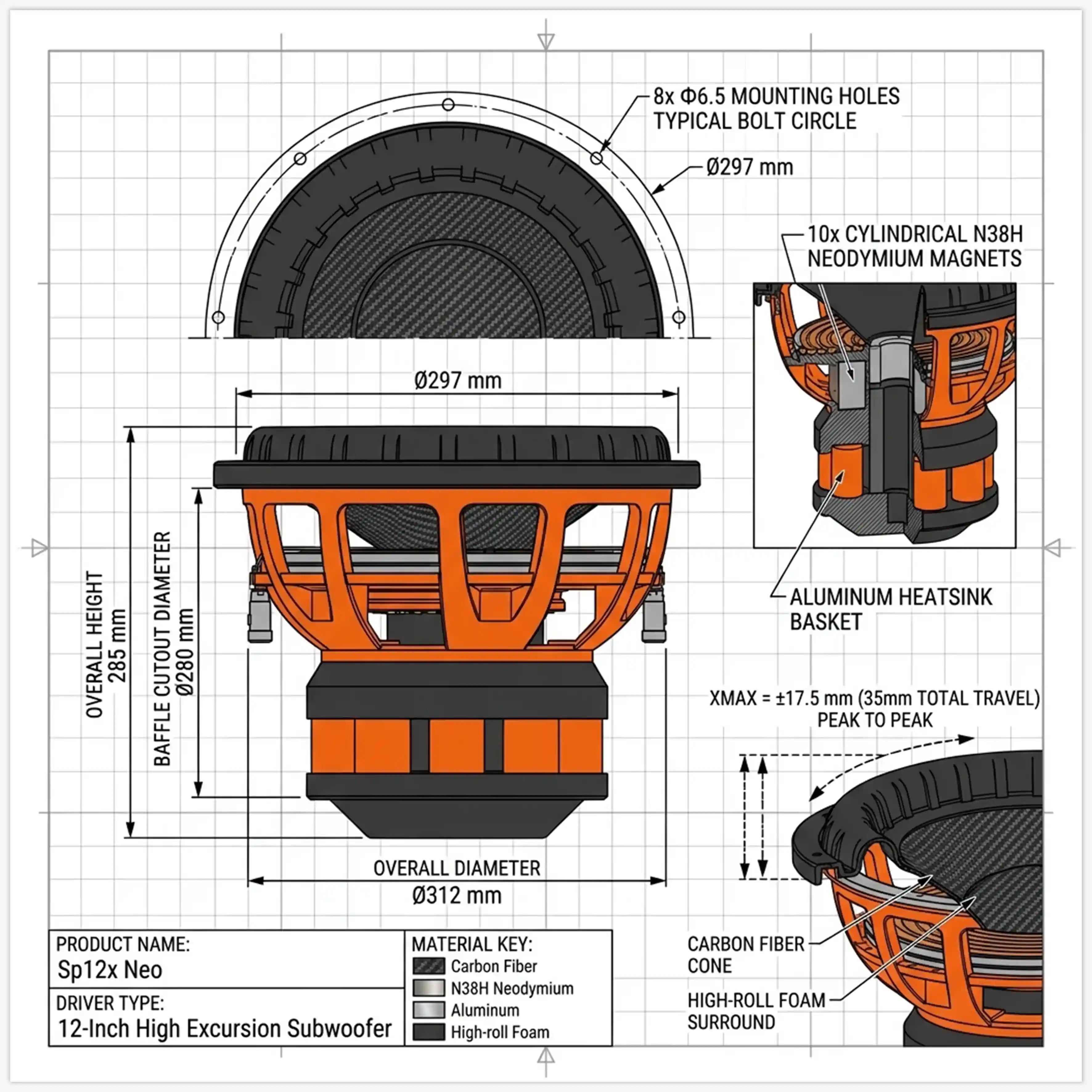

Mounting & Shipping Information

• Overall Diameter: 312mm

• Bolt circle Diameter: 297-8-Φ6.5

• Baffle Cutout Diameter: 280mm

• Depth: 285mm

• Net Weight: 19.5KG

• Shipping Weight: 21.5KG

• Shipping Box (Single): 420X400X410mm

Graph Data (Sinusoidal)

• Graph Type: Sinusoidal (CLIO)

• Left Y-Axis (dBSPL): 50.0 to 100.0

• Right Y-Axis (Ohm): 0.0 to 50.0

• X-Axis (Frequency): 10Hz to 20kHz
