Sp15x NEO | 5000 WATT RMS
Parameters
| Parameter | Symbol | Value |
| Nominal diameter: |
15" |
|
| Mechanical Factor: | QES |
0,41 |
| DC Resistance: | RE |
1Ω |
| Compliance: | CMS |
0,05 |
| BL Factor: | BL |
26,50 |
| Equivalent Cas Air Load: | VAS |
42,43 |
| Effective Moving Mass: | MMS |
472,44 |
| Resonance Frequency: | FS |
32,73 |
| Total Factor: | QTS |
0,38 |
| Effettive Pistom Area: | SD |
0,07 |
| Electrical Factor: | QMS |
5,29 |
| η(Eta Zero): | η0 |
0,13 |
General Specifications
| Specification | Value |
| Nominal Diameter: |
15" |
| Nominal Impedance: |
2Ω* 2Ω |
| RMS power Handling |
5000W |
| Continuous program power: |
10000W |
| Sensitivity 1w/1 m: |
96dB |
| Frequency Range: |
33HZ-500HZ |
| Voice Coil Diameter: |
4 inch |
| Winding Material: |
CCAW, 4 layer |
| Former Material: |
Aluminum |
| Winding Depth: |
70mm |
| Magnetic Gap Depth: |
35mm |
| Xmax: |
±17.5mm |
| Surround Material: |
Carbon fiber / Surround: High-roll foam |
| Surround Design: |
U-shape |
| Magnet: |
N38H Neodymium |

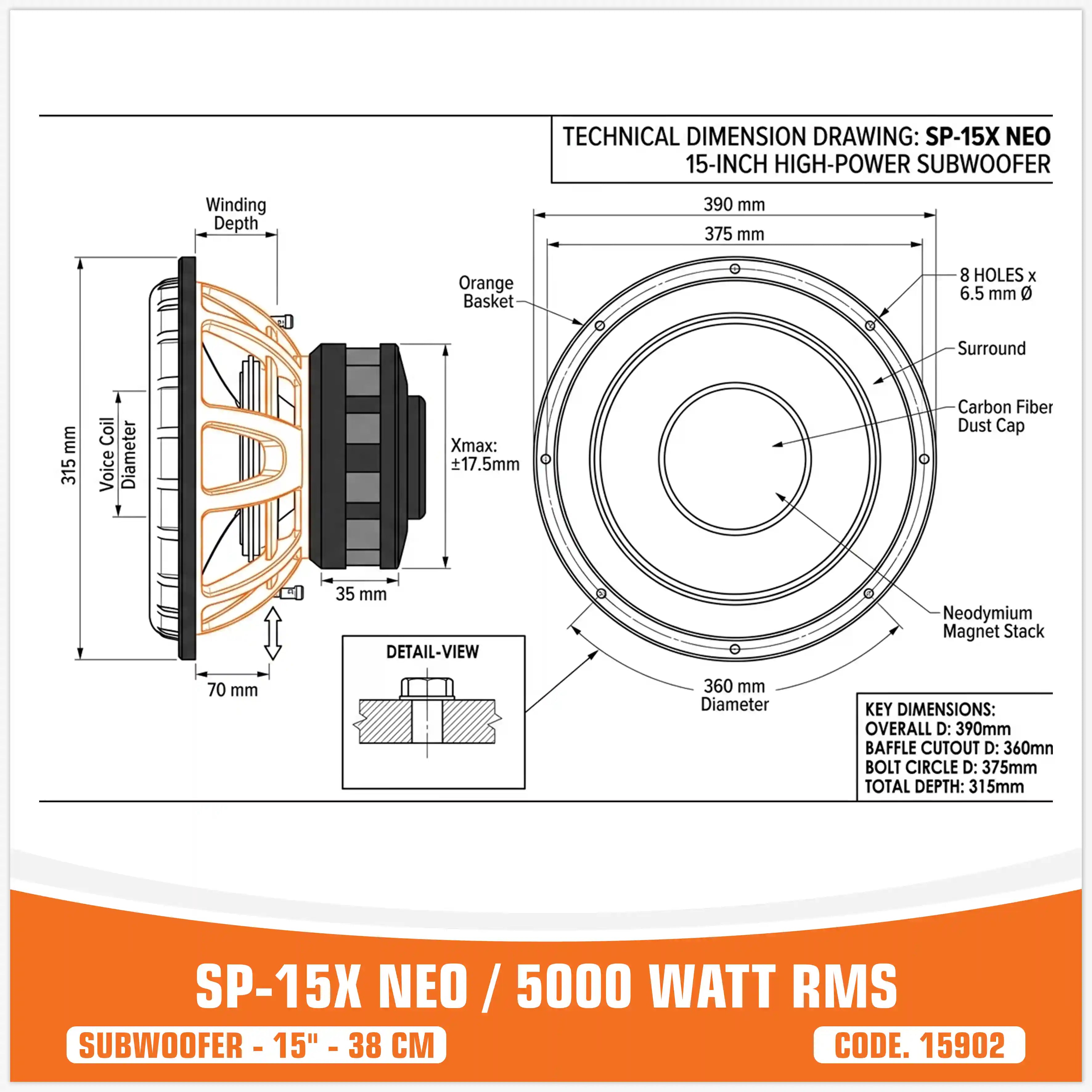

Mounting & Shipping Information
| Specification | Value |
| Overall Diameter: |
390mm |
| Bolt circle Diameter: |
375-8-6.5 |
| Baffle Cutout Diameter: |
360mm |
| Depth: |
315mm |
| Net Weight: |
20.8KG |
| Shipping Weight: |
23.7 KG |
| Shipping Box(Single): |
470×470×450mm |
